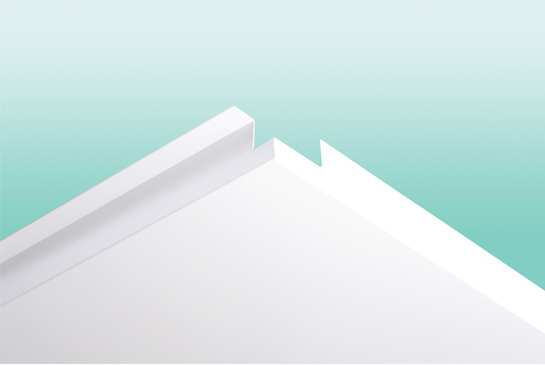

Product Description 產品描述 Outdoor/Indoor Hook-On Ceiling Series is a sealed ceiling design. It is widely used in stadium, housing platform, indoor/outdoor square mall. 室內、室外勾搭天花系列是一種密封式的天花設計，讓人有簡潔明朗的感覺。產品廣泛地適用於體育館、住宅平台及室內／外廣場。 Installation Description 安裝說明 First, adjust the ceiling level with a standard measurement. Ceiling is suspended by the Z-shaped runner. Security clip is installed for against a certain degree of wind. 首先量度及調較天花高度，以Z型龍骨固定天花架，再將勾搭天花板逐件扣入Z型龍骨上。若安裝在室外，應配合防風碼，便可抵禦一定的風力。 Specifications and Size (mm) 規格尺寸 - 600 X 600 |
|||||

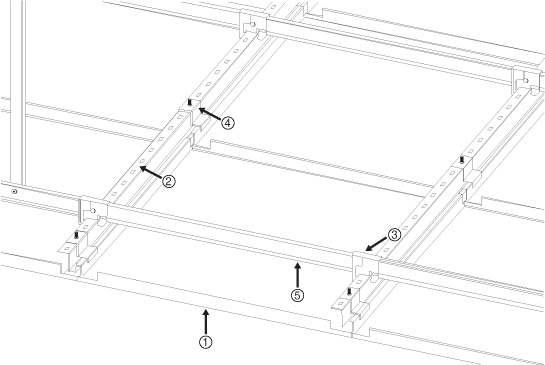

| Floor Plan of Installation 明架天花安裝平面圖 | ||||||
|
|
 |
|||||
|
備註： 1.) 勾搭天花板 2.) Z龍骨 3.) Z龍骨十字吊碼 4.) 防風碼 5.) C型槽 |
||||||
|
|||||
