S型寬板條扣天花系列
S-Wide Panel Ceiling Series




    Product Description 產品描述

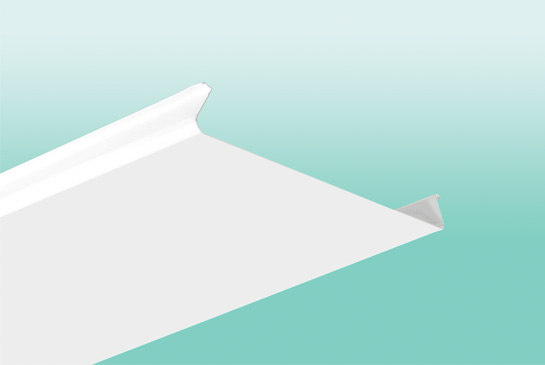

S-wide panel ceiling series is sealed ceiling design and each panel link up each other. It is easy to install and convenience to mix up for different combination. It presents a fashion and brightness outlook. It is widely used in bridge, exhibition hall and residential lobby.

S型寛板條扣天花系列是一種密封式的天花設計,可以隨意拼裝,沒有縫隙。每件天花板緊密連接,方便及易於安裝,可配合不同顏色的鋁合金天花,組合出新穎的天花設計。產品廣泛地適用於天橋、展覽館及住宅大堂。

Installation Description 安裝說明
First, adjust the ceiling level with a standard measurement. Then hang and connect the S–shaped runner. Clip into the ceiling panel directly. It can be against a certain degree of wind.

首先量度及調較天花高度,先將S型龍骨掛上,將天花板扣入S型龍骨中,使天花平整穩固,產品可抵禦一定的風力。

Specifications and Size (mm) 規格尺寸
-300

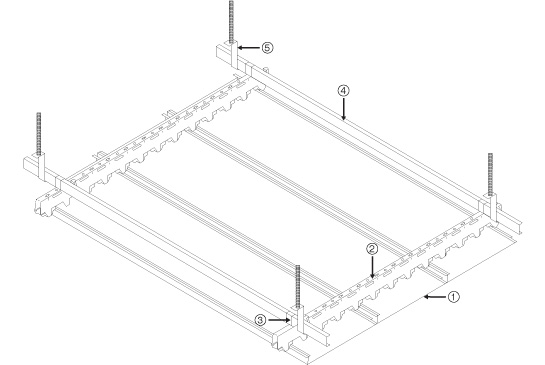

Floor Plan of Installation 明架天花安裝平面圖



備註:
1.) S型條扣天花
2.) S型龍骨
3.) S型龍骨吊碼
4.) C型槽
5.) C型槽吊碼
