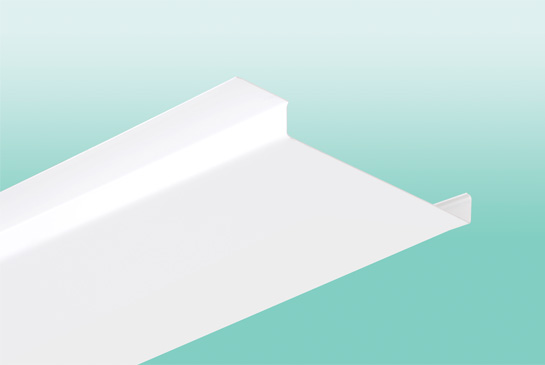

Product Description 產品描述 F-Shaped Linear Ceiling Series is a sealed ceiling design. It has slight 3D visual and wind proofing. It is widely used in housing platform, guesthouse and changing room. F型條扣天花系列是一密封式天花設計，有輕微立體視覺效果及具防風功能。產品廣泛地適用於屋苑平台、賓館及更衣室。 Installation Description 安裝說明 First, adjust the ceiling level with a standard measurement. Then hang and connect the F–shaped runner. Clip into the ceiling panel directly. 首先量度及調較天花高度，先將F型龍骨掛上，將天花板扣入F型龍骨中。 Specifications and Size (mm) 規格尺寸 -85 |
|||||

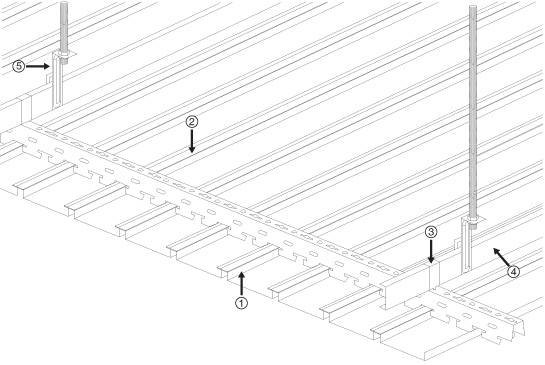

| Floor Plan of Installation 明架天花安裝平面圖 | ||||||
|
|
 |
|||||
|
備註： 1.) F型條扣天花 2.) F型龍骨 3.) F型龍骨吊碼 4.) C型槽 5.) C型槽吊碼 |
||||||
|
|||||
