垂直條型天花系列
U-Baffle Ceiling Series

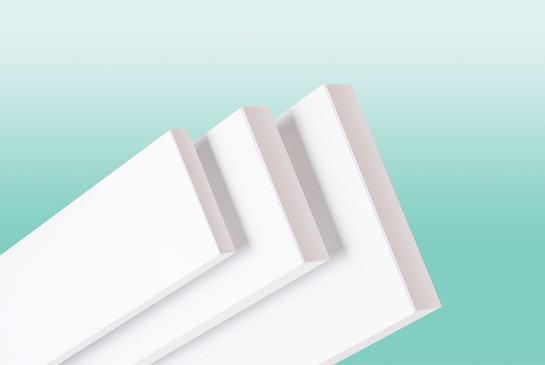

    Product Description 產品描述
U-Baffle Ceiling Series is an open wide design. It can be tailor made for meeting the demand of customers’ needs. It is easy to install and remove for maintenance. It is widely used in housing platform and concourse lobby.

垂直條型天花系列適合用於面積較大的地方,系列設計不但隱蔽天花頂層的設備,並可提供簡單便利的設備檢驗方式,美觀大方。產品廣泛地適用於大型屋苑平台及車站大堂。

Installation Description 安裝說明
First, adjust the ceiling level with a standard measurement. Then connect the main runner with runner clip. Ceiling is suspended by the main runner.

首先量度及調較天花高度,將螺絲桿及龍骨吊碼扣在主龍骨上,將條型天花安裝在主龍骨底部。

Specifications and Size (mm) 規格尺寸
- 15 X 80   - 25 X 80   - 25 X 100   - 30 X 150

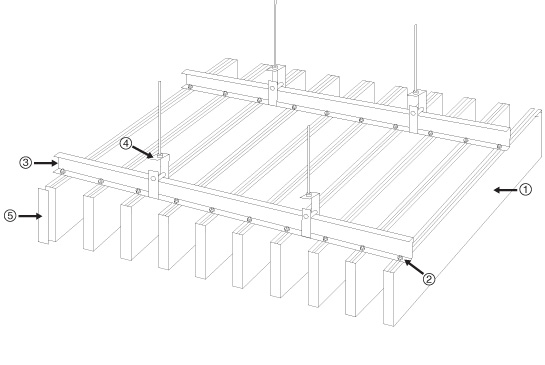

Floor Plan of Installation 明架天花安裝平面圖



備註:
1.) 垂直條型天花
2.) 條型天花吊碼
3.) 條型龍骨
4.) 條型龍骨吊碼
5.) 封頭蓋
