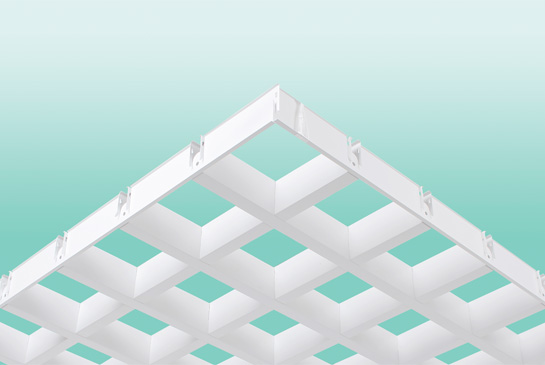

Product Description 產品描述 Lay- In Cell Ceiling series has strong 3D visual effect and good ventilation. It is easy to install and remove for maintenance. It presents a fashion and brightness outlook pattern with mixed colors of ceiling panel. 明架式格柵天花系列是一層次分明，可營造立體效果，方便安裝及易於拆卸，通風性能良好。產品廣泛地適用於公共設施大堂、商業寫字樓、餐廳等地方。 Installation Description 安裝說明 First, adjust the ceiling level with a standard measurement. Then fix the suspended frame by light T-shaped main and cross runner. Adjust the ceiling level and place the ceiling panel directly. 首先量度及調較天花高度，以輕鋼T型主龍骨及副龍骨固定天花架，將組合格柵天花板平放在輕鋼T型龍骨架內。 Specifications and Size (mm) 規格尺寸 - 50 X 50 - 75 X 75 - 100 X 100 - 150 X 150 - 200 X 200 |
|||||

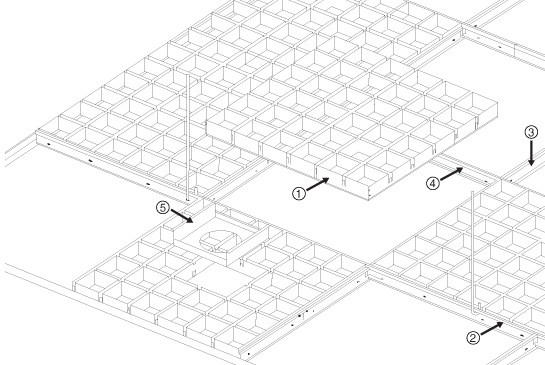

| Floor Plan of Installation 明架天花安裝平面圖 | ||||||
|
|
備註： 1.) 組合格柵天花 2.) 主龍骨(3000mm) 3.) 副龍骨(1200mm) 4.) 副龍骨(600mm) 5.) 燈座 |
|||||
|
|||||
