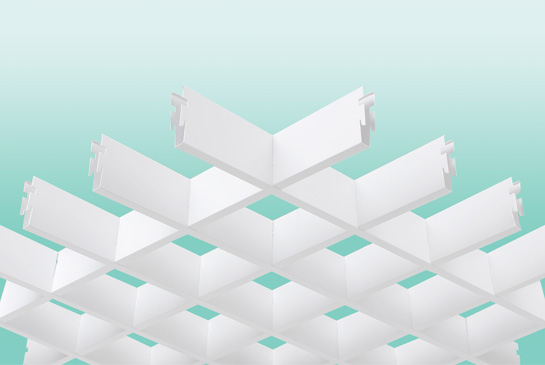

Product Description 產品描述 Grid Cell Ceiling series has strong 3D visual effect and good ventilation. It is easy to install and remove for maintenance. It presents a fashion and brightness outlook pattern with mixed colors of ceiling panel. 暗架式格柵天花系列層次分明，可營造立體效果，方便安裝及易於拆卸，通風性能良好。產品廣泛地適用於公共設施大堂、商業寫字樓、餐廳等地方。 Installation Description 安裝說明 First, adjust the ceiling level with a standard measurement. Then fix the main and cross runner and clip into the ceiling panel directly. 首先量度及調較天花高度，以主、副龍骨固定天花架，將格柵天花板扣入天花架內。 Specifications and Size (mm) 規格尺寸 - 50 X 50 - 75 X 75 - 100 X 100 - 150 X 150 - 200 X 200 |
|||||

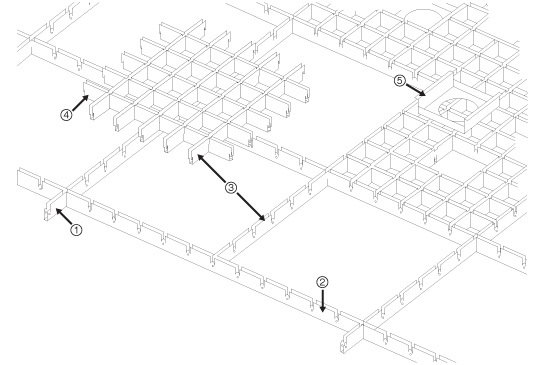

| Floor Plan of Installation 明架天花安裝平面圖 | ||||||
|
|
備註： 1.) 主龍骨A 2.) 副龍骨A(1200mm) 3.) 副龍骨A(600mm) 4.) 副龍骨B(600mm) 5.) 燈座 |
|||||
|
|||||
