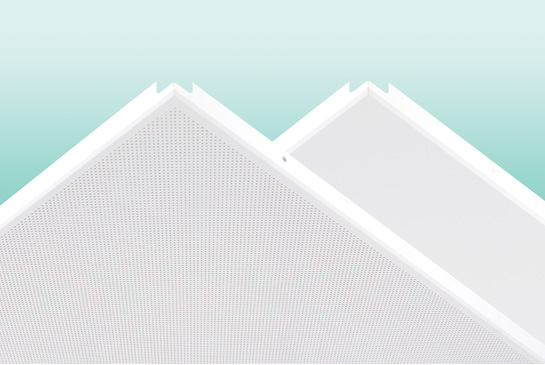

Product Description 產品描述 Clip-In Ceiling Series is widely used in indoor decoration. It presents feeling of comfort and brightness. It is easy to install with spring tea runner and every panel. It can easy to remove by checking point and is widely used in restaurant, supermarket, club house and commercial office. 暗架方板天花系列廣泛應用在室內設計上，產品設計新穎，配以不同規格，予人有舒適的感覺，天花配合龍骨易於安裝及拆卸。產品廣泛地適用於餐廳、超級市場、屋苑會所及寫字樓。 Installation Description 安裝說明 First, adjust the ceiling level with a standard measurement. Then fix the suspended frame by C typed runner or spring tea runner and place the ceiling panel directly. 首先量度及調較天花高度，以C型槽固定，再將三角龍骨扣上C型槽底部，最後將天花板壓入三角龍骨縫中，連接方板與方板之間距離。 Specifications and Size (mm) 規格尺寸 - 100 X 100 - 100 X 600 - 150 X 150 - 150 X 800 - 300 X 300 - 300 X 600 - 400 X 400 - 500 X 500 - 600 X 600 - 800 X 800 - 300 X 1200 - 600 X 1200 |
|||||

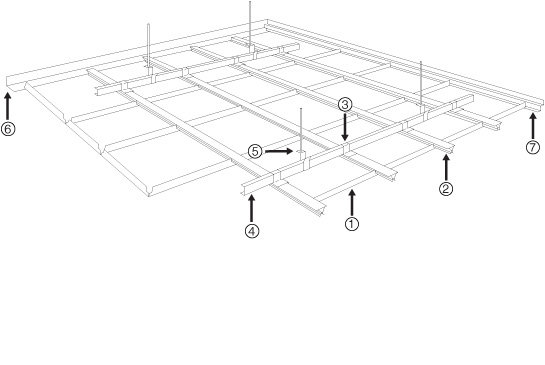

| Floor Plan of Installation 暗架天花安裝平面圖 | ||||||
|
|
 |
|||||
|
備註： 1.) 暗架天花板 2.) 三角龍骨 3.) 三角龍骨吊碼 4.) C型槽 5.) C型槽吊碼 6.) L 型修邊角 7.) W型修邊角 |
||||||
|
|||||
