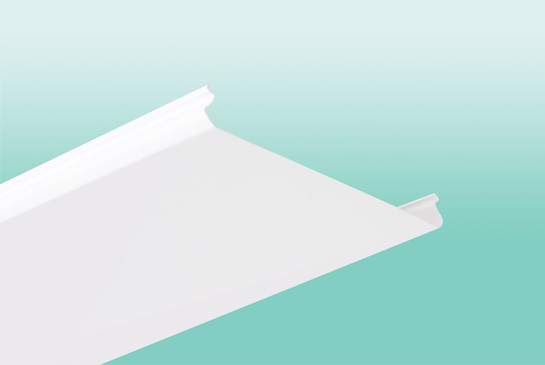

Product Description 產品描述 C-Shaped Linear Ceiling Series is a closed space design by using straight ceiling panel. It presents different layer and glossy outlook by different design pattern. It is widely used in different public area setting, such as shopping mall, shop and residential corridor. C型條扣天花系列是一完全密封的天花設計，可配合不同設計組合出有層次、光滑外觀的天花組合。產品廣泛地適用於不同公眾場合，如購物中心、店鋪及住宅走廊。 Installation Description 安裝說明 First, adjust the ceiling level with a standard measurement. Then hang and connect the C typed runner and clip into the ceiling panel directly. Each panel can be fixed and removed easily. 首先量度及調較天花高度，先掛上C型龍骨，將天花板扣入C型龍骨中，天花固定於C型龍骨扣齒上，並可以單獨拆卸。 Specifications and Size (mm) 規格尺寸 - 75 - 100 - 150 - 200 - 300 |
|||||

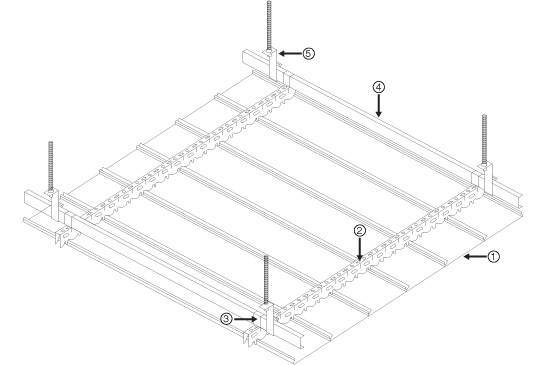

| Floor Plan of Installation 明架天花安裝平面圖 | ||||||
 |
|
|
 備註： 1.) C型條扣天花板 2.) C型龍骨 3.) C型龍骨吊碼 4.) C型槽 5.) C型槽吊碼 |
|||
|
|||||
